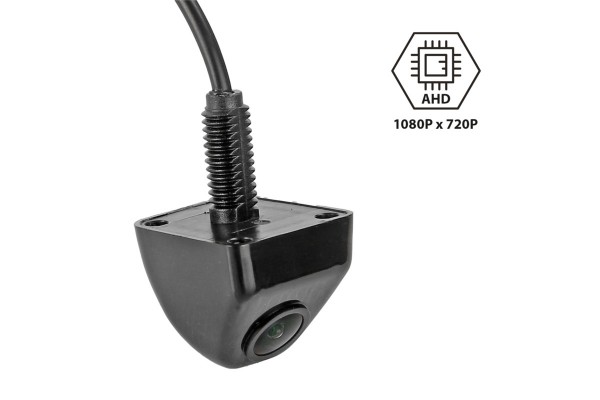

Κάμερα Οπισθοπορείας Αδιάβροχη IP69K Στρογγυλή Ahd Universal 170° Acv 772000-6708

Κάμερα Οπισθοπορείας Αδιάβροχη IP69K Στρογγυλή AHD Universal 170° ACV 772000-6708
Χαρακτηριστικά:

• only suitable for AHD monitors


• AHD universal rear view camera


• Design: square


• Mounting type: substructure


• With small design / IP69K / Viewing angle diagonal 210°


• Construction: plastic


• Color: black


• Extras: small design / IP69K


• Sensor type: 1/2.8" AHD


• Image system: NTSC color


• Lens: mm / F


• Lux: 0.03


• Resolution: TV lines


• Lens angle: diagonal 210°


• Viewing angle: horizontal 170° vertical 120° +5°


• Dust and water resistant: IP69K


• Connection: 4 pin acv system plug(m) Ø5.2mm


• Operating voltage: +3V DC


• Supply voltage: +12V / +24V DC > with voltage converter


• Current consumption: 100mA


• Operating temperature range: -20°C - 70°C


• Storage temperature: -40°C - 80°C


• Dimensions: L / W / H / 25.7mm / 28mm / 23.5mm

Note:
- acv cameras are suitable for continuous operation
- Before installation > check the viewing angle and camera alignment at the installation location using a test monitor
- Camera operating voltage: +3V
- Camera supply voltage: +12V / +24V
- Connection without the +3V voltage converter included in delivery will damage the camera
- Connection: red: +12V / +24V switched, load-stable, black: body ground direct/GND
- Cinch(m) yellow: video

Λεπτομέρειες Προϊόντος
Θέση: Πίσω
Περιλαμβάνει: Κιτ Καλωδίωσης
Περιλαμβάνει: Ταινία Διπλής Όψεως
Πλήθος Τεμαχίων: 1 Τεμάχιο
Χρώμα: Μαύρο
Universal | Universal | Universal
